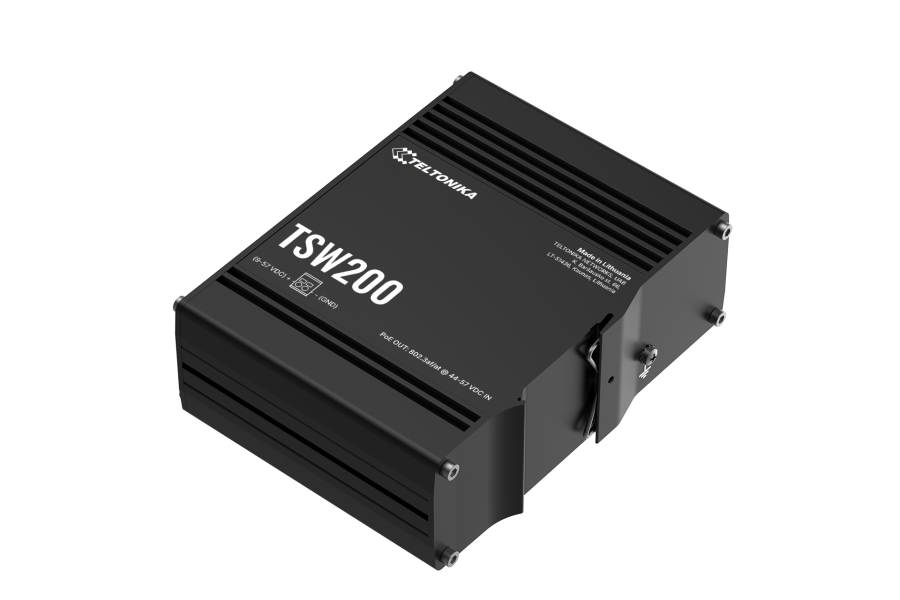

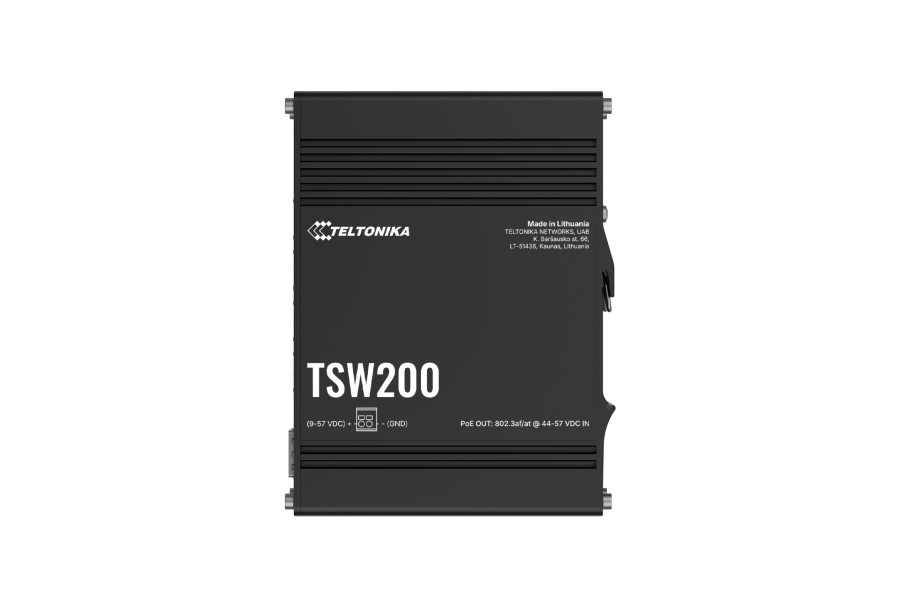

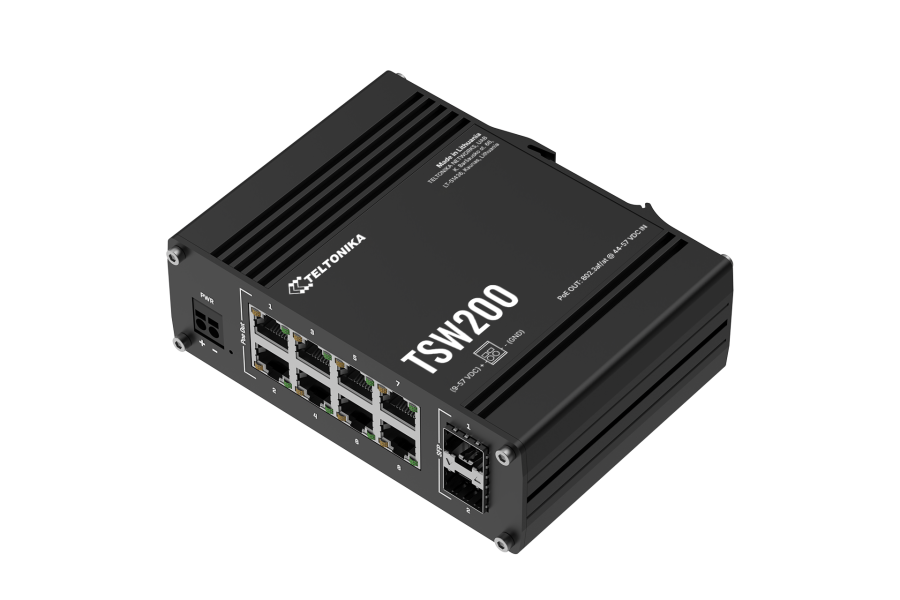

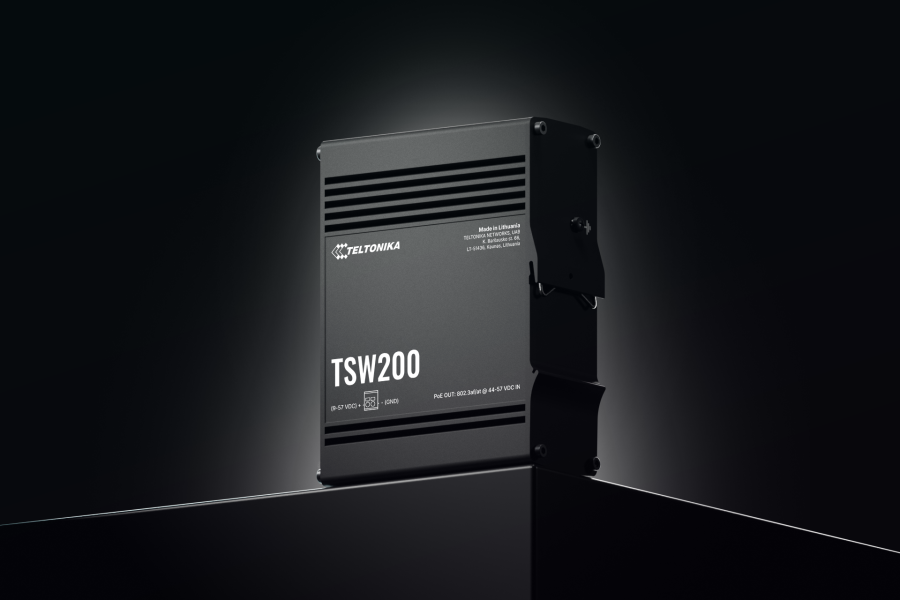

TSW200
INDUSTRIAL POE+ ETHERNET SWITCH
TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.

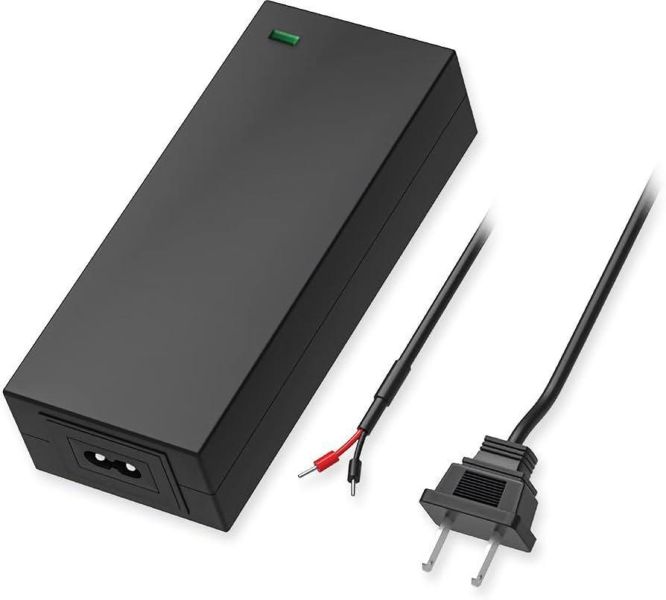

(內附電源供應器)
*兩年保固
8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
2 x SFP ports
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3z
Profinet Class A conformance (available with optional order code)
Port 1 - 8
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (From batch 42)
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (From batch 1-41)
30 W
240 W
Short-circuit and overload protection
20 Gbps
128 KB
2K entries
9216 bytes
2-pin industrial DC power socket
7 – 57 VDC, reverse polarity protection: -80Vmax
44 – 57 VDC
Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W

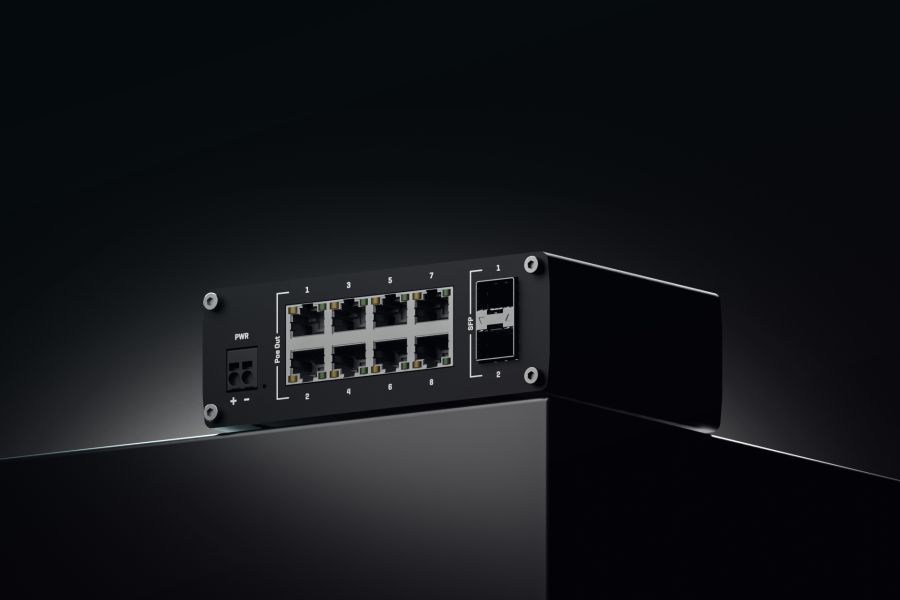

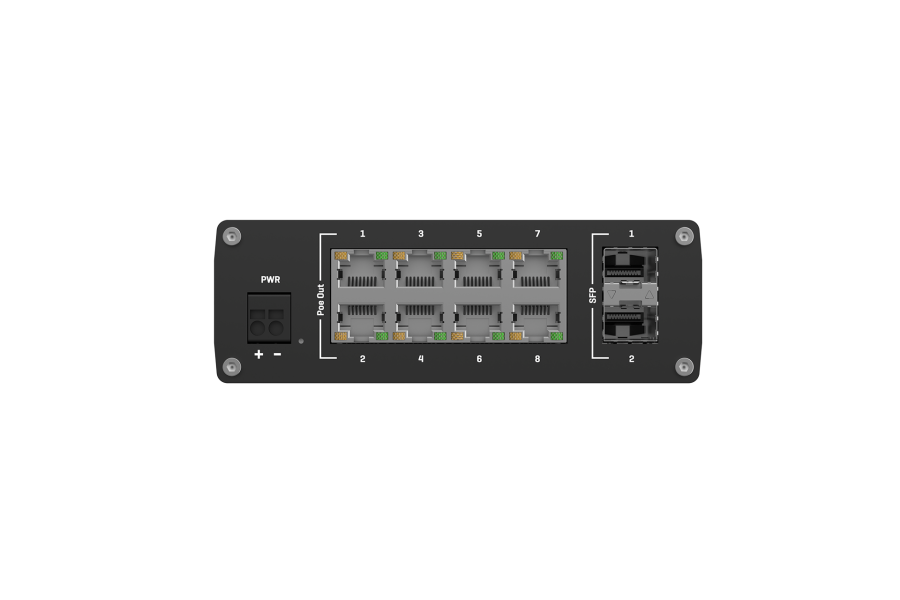

8 x RJ45 ports, 10/100/1000 Mbps
2 x SFP ports
1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs
1 x 2-pin industrial DC power socket
1 x Grounding screw
Anodised aluminium housing and panels
132 x 44.2 x 95.1 mm
517 g

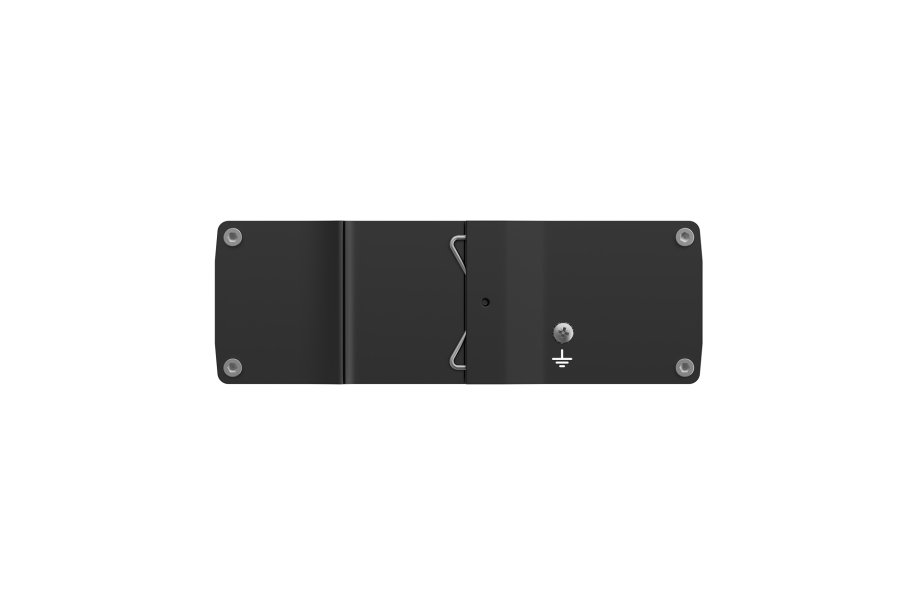

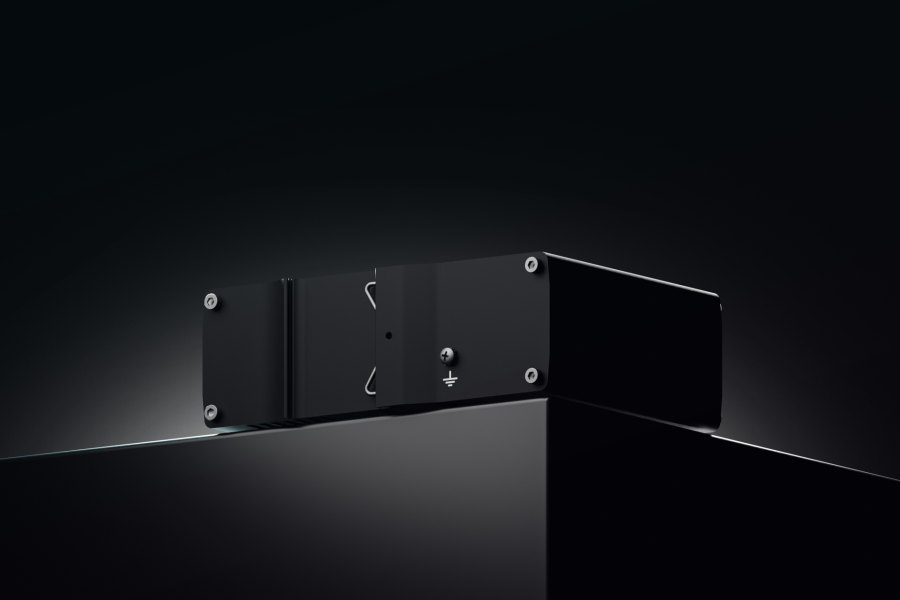

Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
-40 °C to 75 °C
5% to 95% non-condensing
IP30
