Dimensions
442 x 480 x 44 mm (17.4 x 18.9 x 1.7")

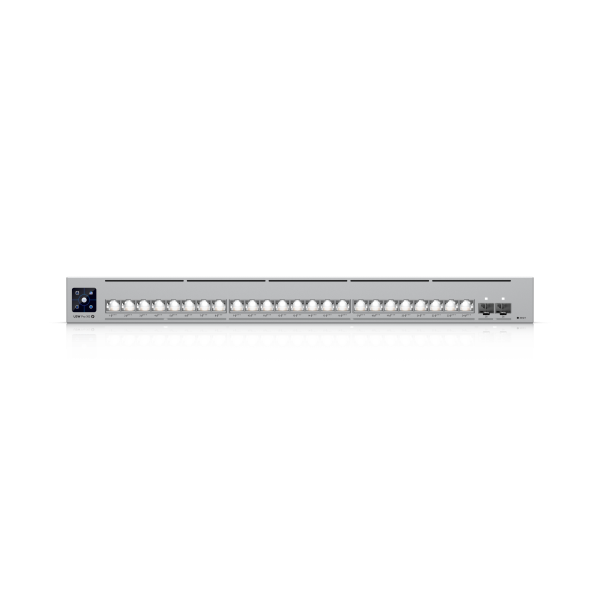

Port Layout
8 (All PoE+++) (2.5G/1G/100M/10M)
16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
2 (25G/10G/1G)
Max. PoE Output
Up to PoE+++
Total PoE Availability
720W
Redundancy
DC Power Backup
Layer 3
✓
Form Factor
Rack mount (1U)
Etherlighting™
✓
Switching Capacity
460 Gbps
Total Non-Blocking Throughput
230 Gbps
Forwarding Rate
342 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
IPv4 Static Routes
512
Packet Buffer Size
8 MB
Access Lists
256
256
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓
PoE Ports
24
Max. PoE Wattage per Port by PSE
15.4W
30W
60W
90W
Max. Power Consumption
150W (Excluding PoE Output) 870W (Including PoE Output)

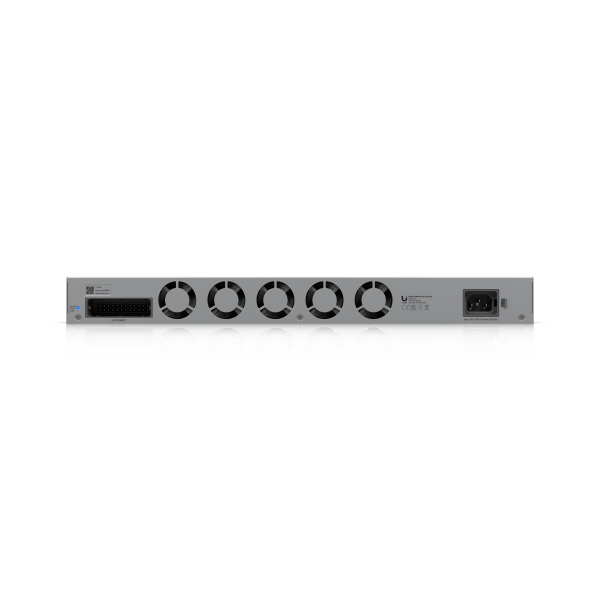

Power Method
(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 870W
Supported Voltage Range
100–240V AC
Management
Ethernet AR
Weight
Without mounting brackets: 7.9 kg (17.4 lb) With mounting brackets: 8 kg (17.6 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel

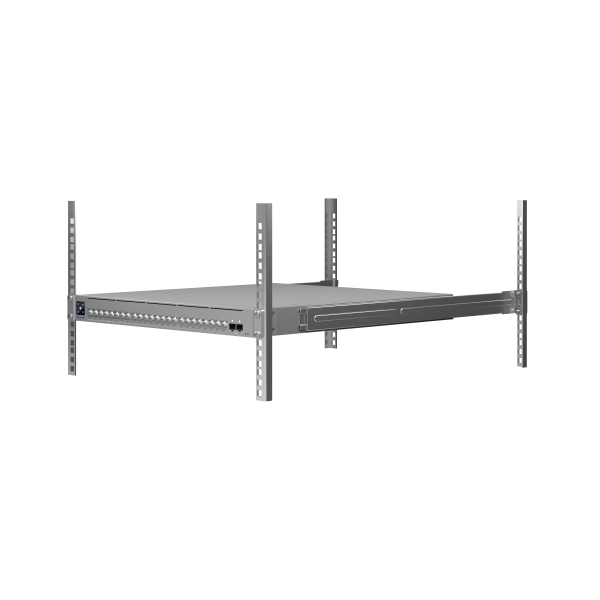

Supported Rack Depth
482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 30kV, contact: ± 20kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
✓
✓
LEDs
✓
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 04322-25-08356
Application Requirements
Version 9.1.120 and later
