Dimensions
442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")

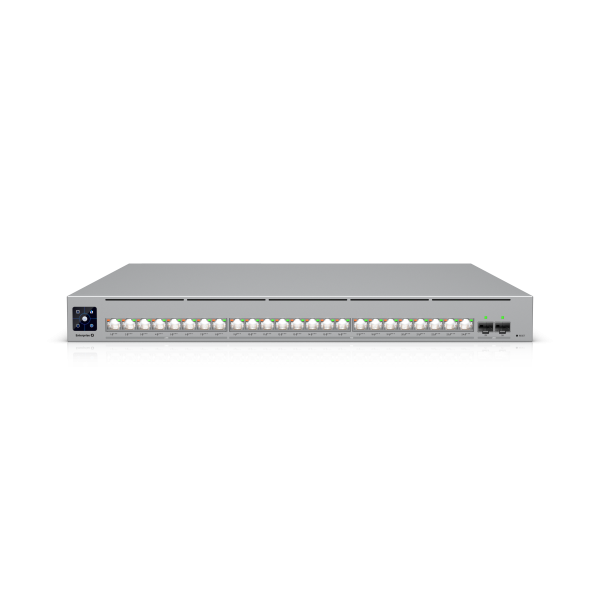

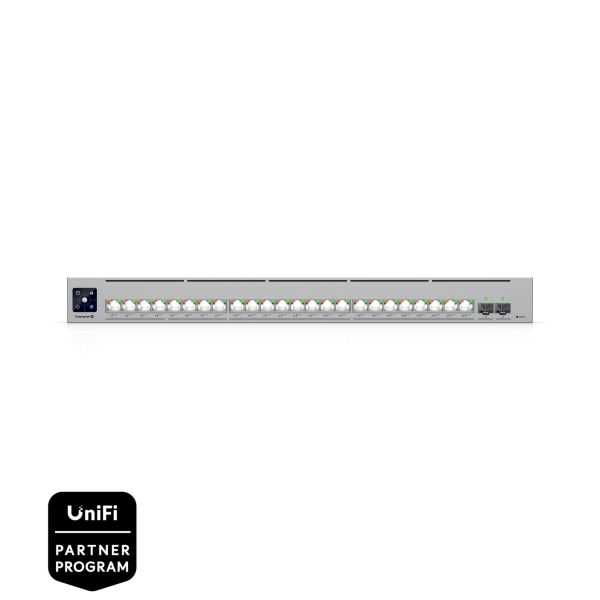

Port Layout
8 (All PoE+++) (2.5G/1G/100M/10M)
16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
2 (25G/10G/1G)
Max. PoE Output
Up to PoE+++
Total PoE Availability
100-240V AC Shared Mode: 1,050W with (2) 600W modules 100-240V AC Redundant Mode: 450W with (2) 600W modules 200-240V AC Shared Mode: 2,250W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules
Redundancy

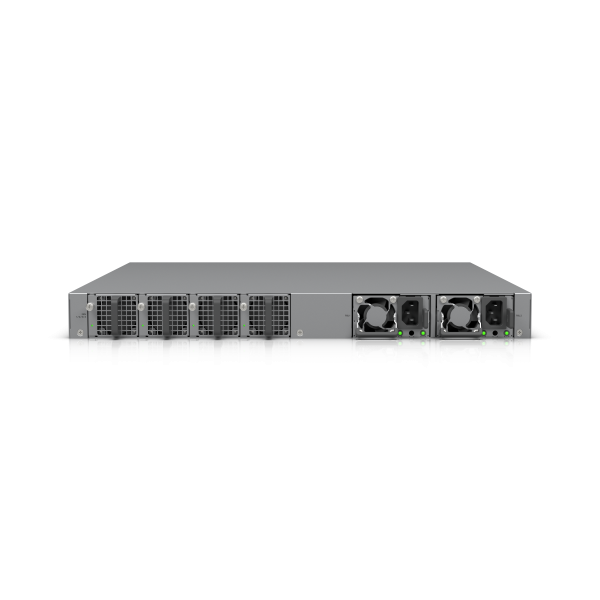

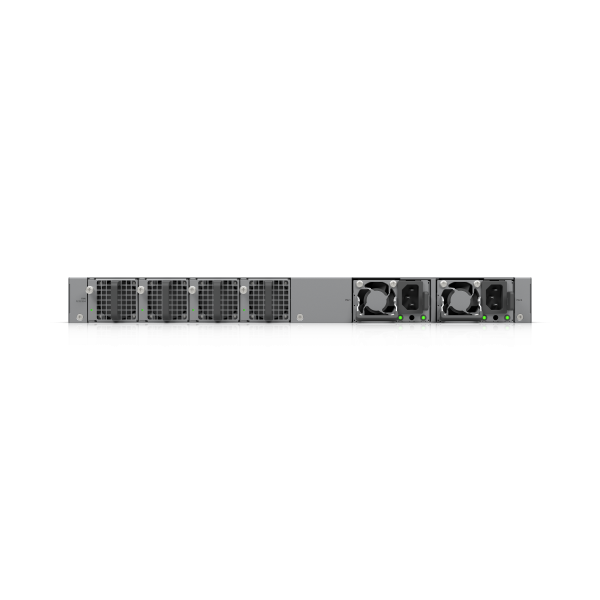

(2) Hot-Swappable PSUs (4) Hot-Swappable Fans
Layer 3
✓
Form Factor
Rack Mount (1U, Full-Depth)

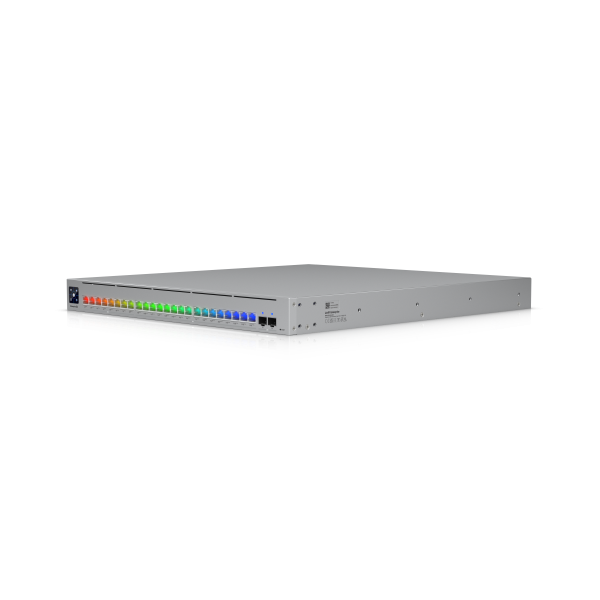

Etherlighting™
✓
Switching Capacity
460 Gbps
Total Non-Blocking Throughput
230 Gbps
Forwarding Rate
342 Mpps
Supported VLANs
1,000
MAC Address Table Size
32,000
L3 Table Size
128,000
256,000
512
Packet Buffer Size
8 MB
Access Lists
256
256
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓
PoE Ports
24
Max. PoE Wattage per Port by PSE
15.4W
30W
60W
90W
Max. Power Consumption
150W (Excluding PoE Output) 2,400W (Including PoE Output)
Power Method
(2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method
(2) AC input, Hot-swappable power modules
Power Supply
(2) Hot-swappable AC/DC 600W power modules
Supported Voltage Range
100–240V AC
Management
Ethernet AR
Heat Dissipation
444 BTU/hr (Excluding PoE Output)
Weight
Without mounting brackets: 9.46 kg (20.9 lb) With mounting brackets: 9.56 kg (21.1 lb)
Enclosure Material
SGCC steel
Supported Rack Depth
482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
LCM Display
1.3" touchscreen
Fan Method
(4) hot-swappable fan modules
ESD Protection
Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
✓
✓
LEDs
✓
✓
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 06181-25-08356
Application Requirements
Version 9.0.114 and later
