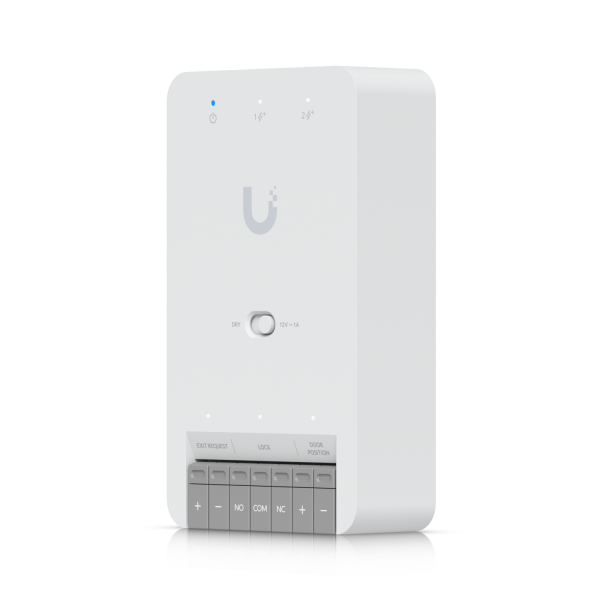

UniFi G3 Starter Kit / UA-G3-SK

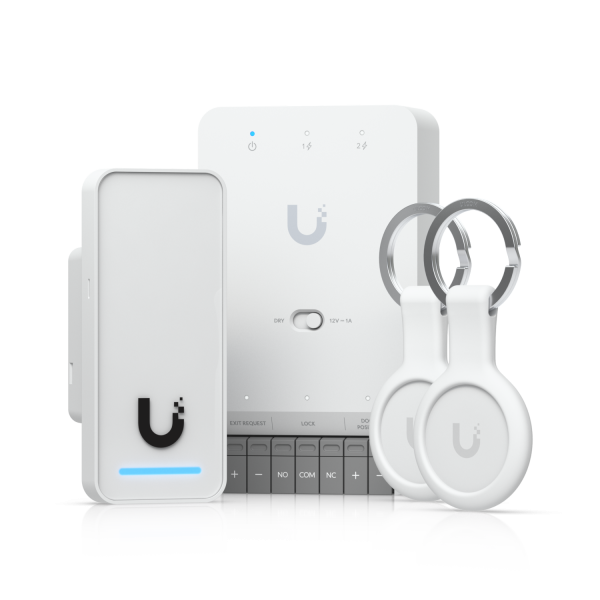

In the Box
(1) Door Hub Mini (1) G3 Reader (2) Pocket Keyfobs
Touch Pass
10 free 1-year Touch Passes included Learn More
Dimensions
113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
Supported Doors
1
Maximum User Count
3,000

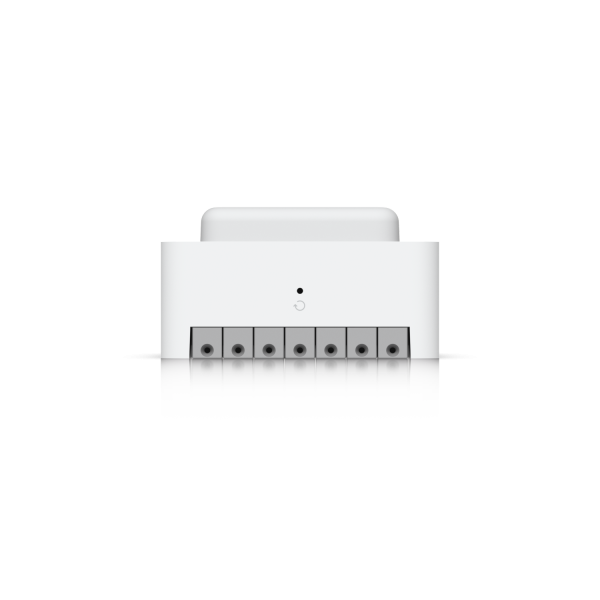

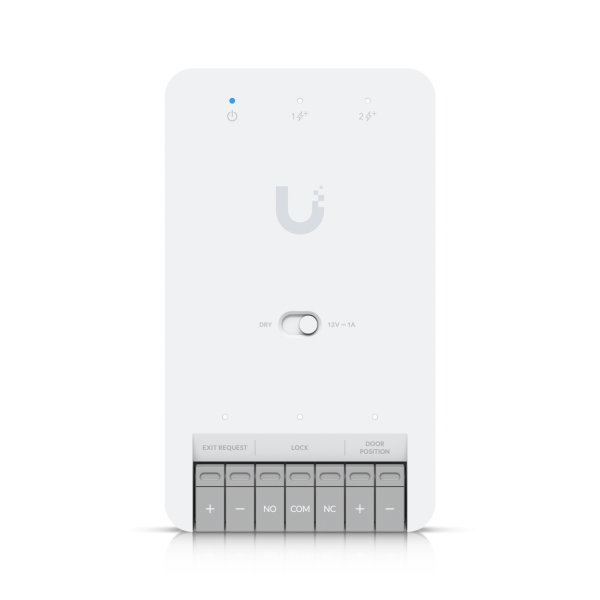

Input Terminals
(1) Door Exit Request (1) Door Position
Power Method
PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Weight
190 g (6.7 oz)
Enclosure Material
Polycarbonate, metal
Mounting
DIN-rail (Included)

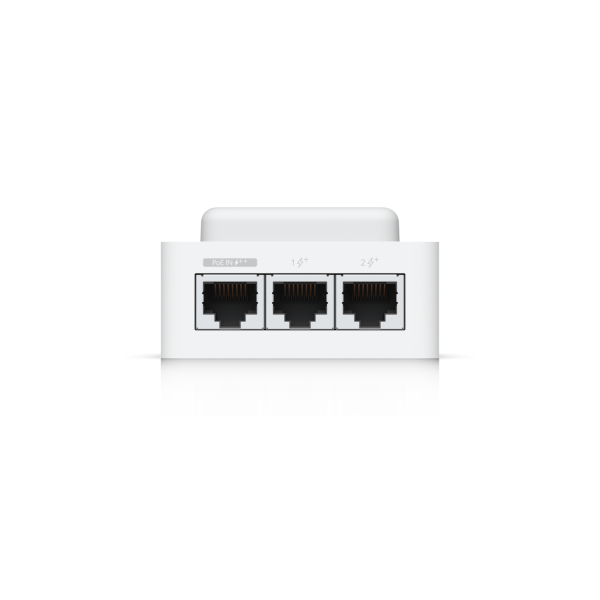

Networking Interface
(3) GbE RJ45 ports
PoE Interface
(1) PoE++ input, 50V DC, 1A (2) PoE outputs, 50V DC, 30W per port (Max 45W aggregated)
Max. Power Consumption
19W (Without PoE output) 50W (With PoE output)
Digital Input
Request to exit, door position sensor
Dry Output Relay
30V DC, 1A
Wet Output Relay
12V DC, 1A
LEDs
B/W Learn More
Button
(1) Factory reset (1) Dry/Wet switch
Recommend Max. Cable Length
24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Level
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Management Application
UniFi Access
Software Information
The software version can be checked at https://unifi.ui.com
Document number, and issue date and/or revision level
UA-Hub-Door-Mini, V01

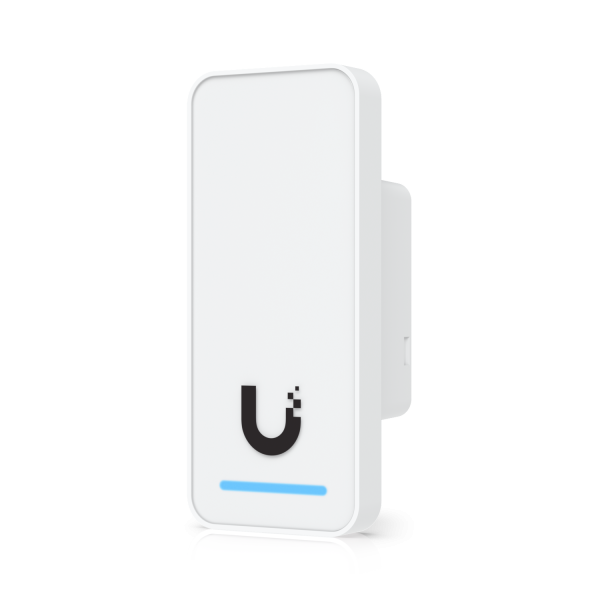

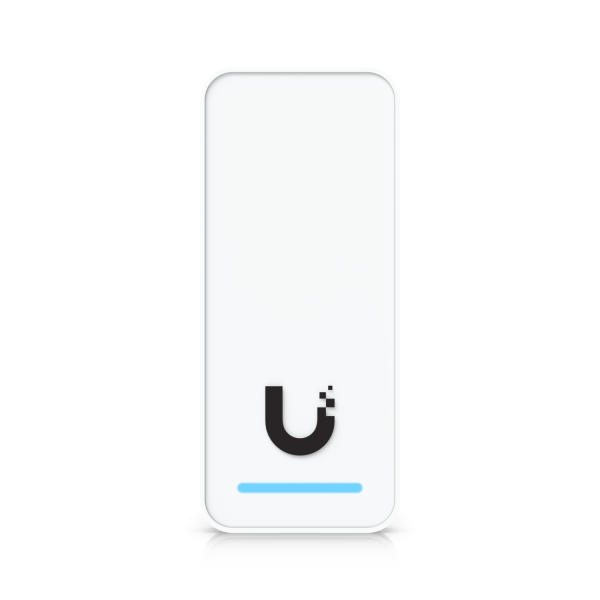

Optics
12 MP (3072 × 4096)
H: 98.6°, V: 125.7°, D: 157.8°
Dimensions
93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
NFC Card & Keyfob Access
✓
Apple/Google Wallet
✓
Mobile Unlock
✓
Handwave Request to Exit
✓
Weatherproofing
IP55
Weight
82 g (2.9 oz)
Enclosure Material
Polycarbonate, glass
Mount Material
Aluminum alloy
Mounting
In-wall, gang box (Included) Junction box (Optional)
Indoor and Outdoor Use
✓

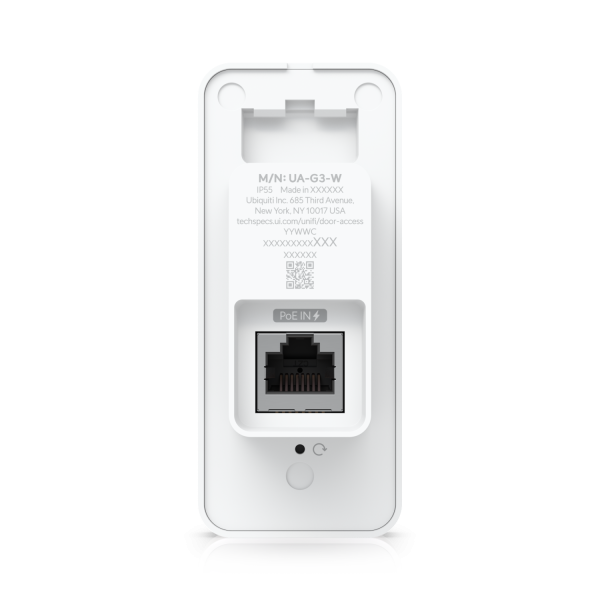

Networking Interface
(1) 10/100 MbE RJ45 port
Connectivity
BLE 4.1 NFC
Power Method
PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
5W
Supported Voltage Range
48V DC
ESD/EMP Protection
Air: ± 15kV, contact: ± 8kV
Sensors
Proximity sensor
Speaker
(1) Yes, 0.7W
LEDs
R/G/B/W Learn More
Button
(1) Factory reset
NFC Frequency
13.56 MHz
NFC Read Range
< 30 mm (1.18'')
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Level
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Ambient Operating Temperature
-30 to 45° C (-22 to 113° F)
Ambient Operating Humidity
5 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G3, V01
Management Application
UniFi Access
Software Information
The software version can be checked at https://unifi.ui.com

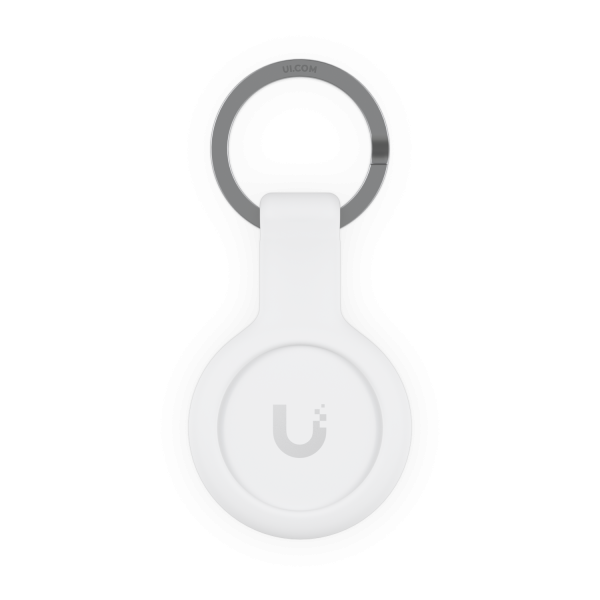

Dimensions
84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
Weight
16 g (0.56 oz)
Enclosure Material
Polycarbonate, stainless steel, silicone rubber
Weatherproofing
IP54
Ambient Operating Humidity
10 to 90% noncondensing
Ambient Operating Temperature
-10 to 45° C (14 to 113° F)
NFC Frequency
13.56 MHz
NFC Technology
ISO/IEC 14443 Type A MIFARE DESFire EV3 4K UniFi Access Proprietary Security Protocol
NDAA Compliant
✓
Certification
CE
