UniFi G3 Starter Kit Pro / UA-G3-SK-Pro
In the Box
(1) Door Hub (1) G3 Reader Pro (1) G3 Reader (2) Pocket Keyfobs
Touch Pass
10 free 1-year Touch Passes included Learn More
Dimensions
174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
Supported Doors
1
Maximum User Count
6,000
Input Terminals
(2) Door exit request (1) Door position (1) Emergency
Power Method
PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
UL 294 Level
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weight
363 g (12.8 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Mounting
DIN-rail (Included)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing

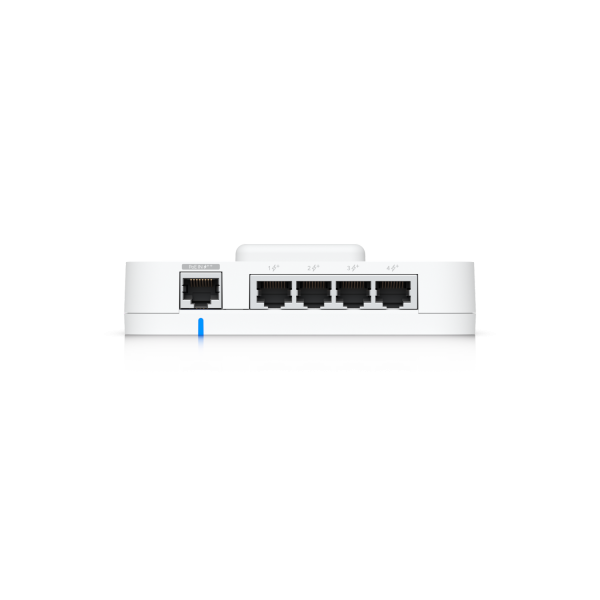

Networking Interface
(5) 10/100/1000 Base-T
PoE Interface
(1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 45W aggregated)
Max. Power Consumption
30W (Without PoE output) 50W (With PoE output)
Digital Input
Request to exit, request to enter, remote release, door position sensor
Dry Output Relay
Lock: 30V DC, 1A Aux: 30V DC, 1A
Powered Output Relay
Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A
LEDs
B/W Learn More
Button
(1) Factory reset
Recommend Max. Cable Length
24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (98 ft) 20 AWG length: 30 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: 1
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-Hub-Door002, V01
Software Information
The software version can be checked at https://unifi.ui.com

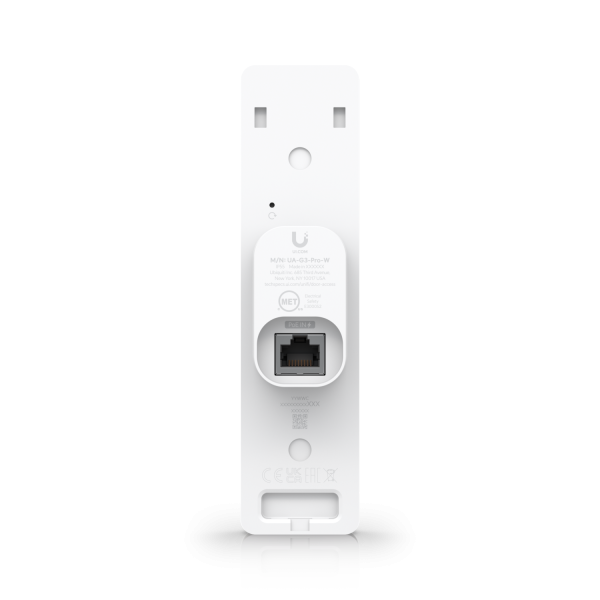

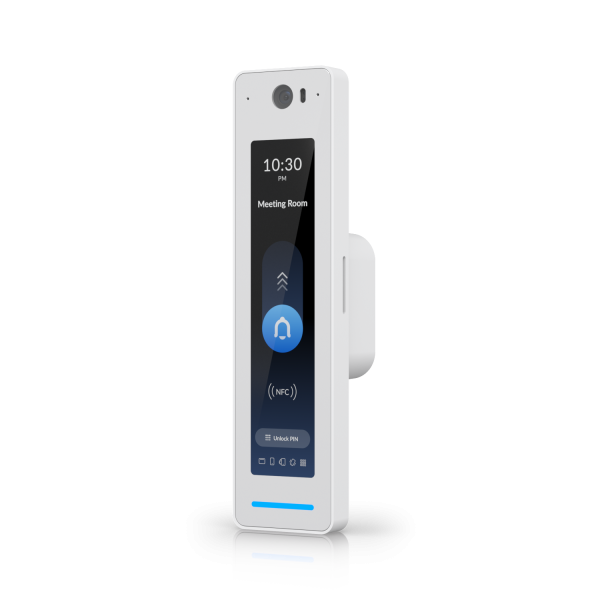

Dimensions
160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
Integrated Camera
✓
NFC Card & Keyfob Access
✓
PIN Access
✓
Apple/Google Wallet
✓
Mobile Unlock
✓
Face Unlock
✓
Two-Way Intercom & Doorbell Access
✓
Weatherproofing
IP55
NDAA Compliant
✓
UL 294 Level
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weight
136 g (4.8 oz)
Enclosure Material
Polycarbonate, glass
Mount Material
Aluminum alloy
Mounting
Wall, gang-box mount (Included) Angle mount, junction box (Optional)
Indoor and Outdoor Use
✓
Ambient Operating Temperature
Device: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F)
Ambient Operating Humidity
5 to 90% noncondensing
Networking Interface
(1) GbE RJ45 port
Connectivity
BLE 4.2 NFC
Power Method
PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
6W
Supported Voltage Range
48V DC
ESD/EMP Protection
Air: ±15kV, contact: ±8kV
Video
30 FPS
2MP 1200 x 1600 (3:4)
Optics
12 MP (3072 × 4096)
H: 98.6°, V: 125.7°, D: 157.8°
Sensors
Proximity sensor
Display
120 mm (4.7") diagonal
Capacitive touch
480 nits (Typical)
Portrait
1280 x 286 px
Microphone
✓
Speaker
(1) Yes, 1.5W
LEDs
R/G/B/W/Amber Learn More
Button
(1) Factory reset
NFC Frequency
13.56 MHz
NFC Read Range
< 30 mm (1.18'')
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC,UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G3-Pro-W/UA-G3-Pro-B, V01
Software Information
The software version can be checked at https://unifi.ui.com

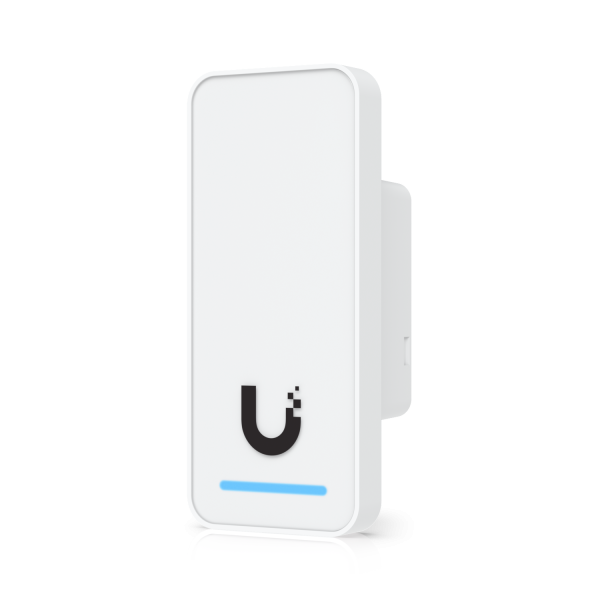

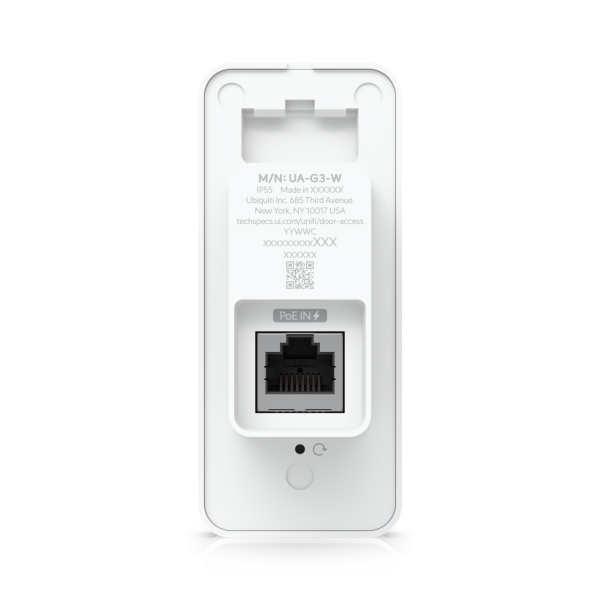

Dimensions
93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
NFC Card & Keyfob Access
✓
Apple/Google Wallet
✓
Mobile Unlock
✓
Handwave Request to Exit
✓
Weatherproofing
IP55
NDAA Compliant
✓
UL 294 Level
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weight
82 g (2.9 oz)
Enclosure Material
Polycarbonate, glass
Mount Material
Aluminum alloy
Mounting
In-wall, gang box (Included) Junction box (Optional)
Indoor and Outdoor Use
✓
Ambient Operating Temperature
-30 to 45° C (-22 to 113° F)
Ambient Operating Humidity
5 to 90% noncondensing
Networking Interface
(1) 10/100 MbE RJ45 port
Connectivity
BLE 4.1 NFC
Power Method
PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
5W
Supported Voltage Range
48V DC
ESD/EMP Protection
Air: ± 15kV, contact: ± 8kV
Sensors
Proximity sensor
Speaker
(1) Yes, 0.7W
LEDs
R/G/B/W Learn More
Button
(1) Factory reset
NFC Frequency
13.56 MHz
NFC Read Range
< 30 mm (1.18'')
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G3, V01
Software Information
The software version can be checked at https://unifi.ui.com
Dimensions
84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
Weight
16 g (0.56 oz)
Enclosure Material
Polycarbonate, stainless steel, silicone rubber
Weatherproofing
IP54
NDAA Compliant
✓
Ambient Operating Humidity
10 to 90% noncondensing
Ambient Operating Temperature
-10 to 45° C (14 to 113° F)
NFC Frequency
13.56 MHz
NFC Technology
ISO/IEC 14443 Type A MIFARE DESFire EV3 4K UniFi Access Proprietary Security Protocol
Certification
CE
